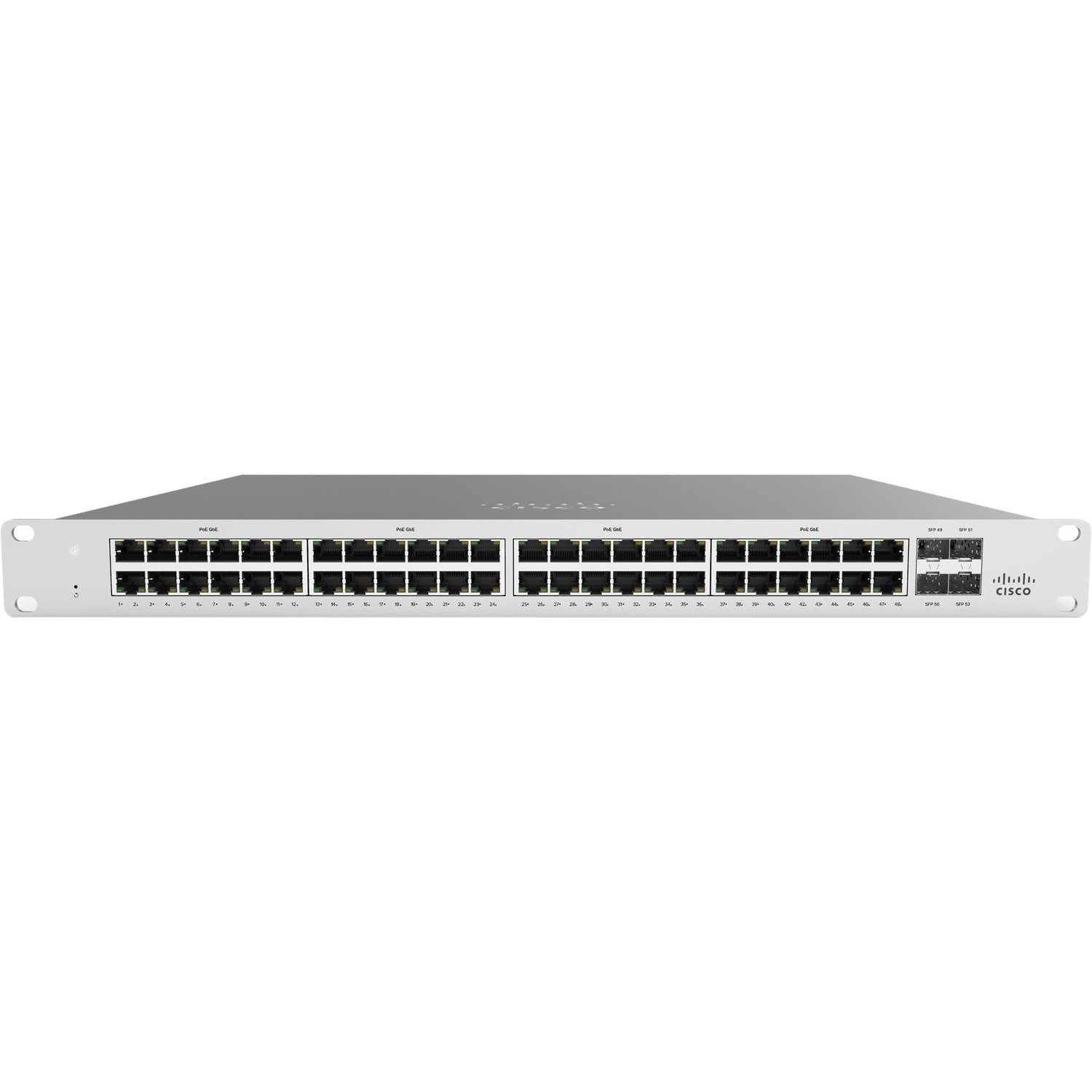

Meraki MS120 MS120-48-HW 48 Ports Manageable Ethernet Switch

  • Part: 1942665
  • Model: MS120-48-HW
$4,384.60

Availability

Out of Stock

CLOUD-MANAGED ACCESS SWITCHES

Cisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.

Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

INDUSTRY LEADING CLOUD MANAGEMENT

Cloud management has a number of benefits that make it easier to build networks large and small:

  • True zero-touch device provisioning
  • Virtual Stacking: manage up to thousands of ports from a single pane of glass
  • Application-layer visibility with automatic operating system, client, and hostname fingerprinting
  • Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
  • Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes
  • Role-based administration and automatic, scheduled firmware upgrades over the cloud
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud

  • General Information
    • Manufacturer
    • Cisco Systems, Inc
    • Manufacturer Part Number
    • MS120-48-HW
    • Manufacturer Website Address
    • http://www.cisco.com/c/en_au
    • Brand Name
    • Meraki
    • Product Series
    • MS120
    • Product Model
    • MS120-48-HW
    • Product Name
    • MS120-48-HW Ethernet Switch
    • Product Type
    • Ethernet Switch
  • Interfaces/Ports
    • Total Number of Network Ports
    • 48
    • Uplink Port
    • Yes
    • Modular
    • Yes
    • Stack Port
    • Yes
    • Port/Expansion Slot Details
    • 48 x Gigabit Ethernet Network
    • 4 x Gigabit Ethernet Expansion Slot
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Optical Fiber
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 10/100/1000Base-T
    • 1000Base-X
  • I/O Expansions
    • Number of Total Expansion Slots
    • 4
    • Expansion Slot Type
    • SFP
    • Shared SFP Slot
    • No
    • Number of SFP Slots
    • 4
  • Network & Communication
    • Layer Supported
    • 2
  • Management & Protocols
    • Manageable
    • Yes
  • Power Description
    • Power Source
    • Power Supply
    • Redundant Power Supply Supported
    • No
  • Physical Characteristics
    • Compatible Rack Unit
    • 1U
    • Form Factor
    • Rack-mountable
    • Desktop
    • Height
    • 43.7 mm
    • Width
    • 439.9 mm
    • Depth
    • 249.9 mm
    • Weight (Approximate)
    • 4.07 kg
