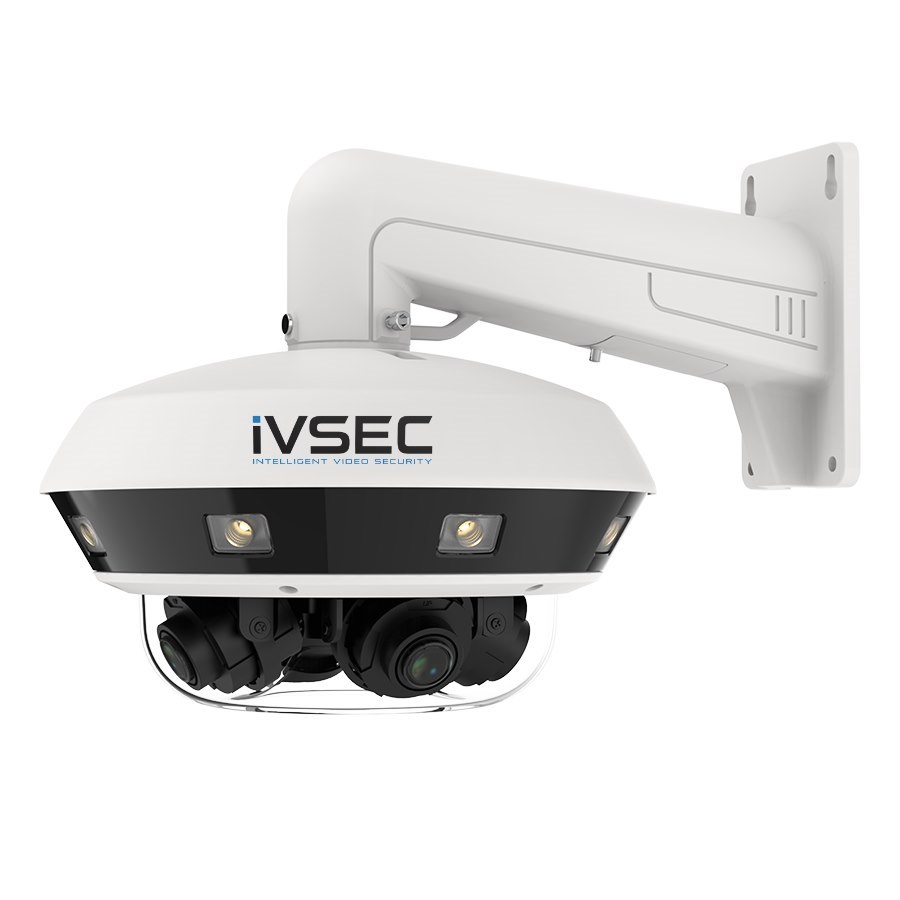

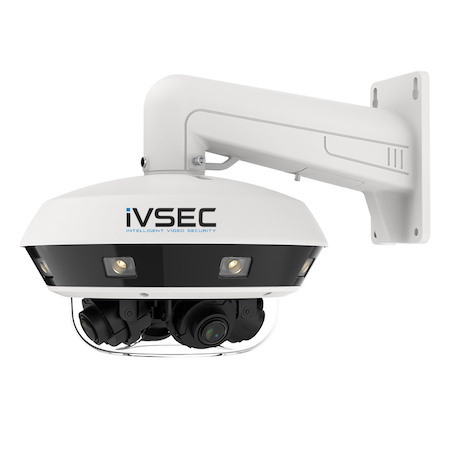

Ivsec Dome Ip Cameras 32MP Using 4-Directional 8MP Multisensor 25FPS Ip66 Ir

  • Part: 2749747
  • Model: NC542ADX


In Stock

CCTV Storage Calculator https//www.seagate.com/au/en/video-storage-calculator/

NC542ADX Security Camera


Experience cutting-edge surveillance with our state-of-the-art CCTV camera. Boasting four adjustable lenses within a single unit it offers an expansive 360° field of view ensuring no corner goes unnoticed. Each channel delivers remarkable clarity with a maximum output of 8MP at 30FPS capturing even the tiniest details.

Camera Type 360
Image Sensor 1/1.8″ Progressive Scan CMOS x 4
Maximum Video Resolution Megapixels 8 x 4
Maximum Video Resolution 3840×2160
Frames Per Second FPS 25
Lens 2.8mm – 12mm H.FOV 48 to 112°
Lens Type Motorised Zoom
Maximum Night IR Distance M 35
LED IR White
Video Compression H.265 H.265 H.264 H.264 MJPEG
ONVIF depends on firmware version ONVIF Profile S/G/T HTTP API
Accessories IV2491X included IV2444X IV2488X
Outdoor Use Yes
IP Rating IP67
Vandal Resistant Yes IK10
Day/Night Mode Auto
Image Enhancement Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC
Intelligent Video IVS Motion Detection Face Recogniton Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting
Edge Recording microSD/SDHC Card Micro SD/SDHC Card
Multiple Streams encode format 2 Streams
Software Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code
Cloud option camera only Dropbox
Audio Streaming Yes – input connector for external mic
Ethernet Ethernet 10/100/1000 Base-T
Power Over Ethernet Yes
Power Supply Power over Ethernet IEEE 802.3at DC12V AC24V
Power Consumption < 43W
Connectors RJ-45 DC Power Input Analog Video Output Audio In Audio Out Alarm in or out 4.
Operating Environment -30ºC to 55ºC -22ºF-131ºF Humidity ≤95 RH
In The Box Free Software available from FTP Printed quick user guide Installation template Mounting screws and plugs
Product Dimensions H x W x L mm 195 x 300 x 300
Packaging Dimensions H x W x L mm 500 x 395 x 385
Weight Net kg 4.6
Warranty 3 Year Warranty
