- General Information
- Manufacturer
- Zhejiang Dahua Technology Co., Ltd.
- Manufacturer Website Address
- http://www.dahuasecurity.com
- Brand Name
- Dahua

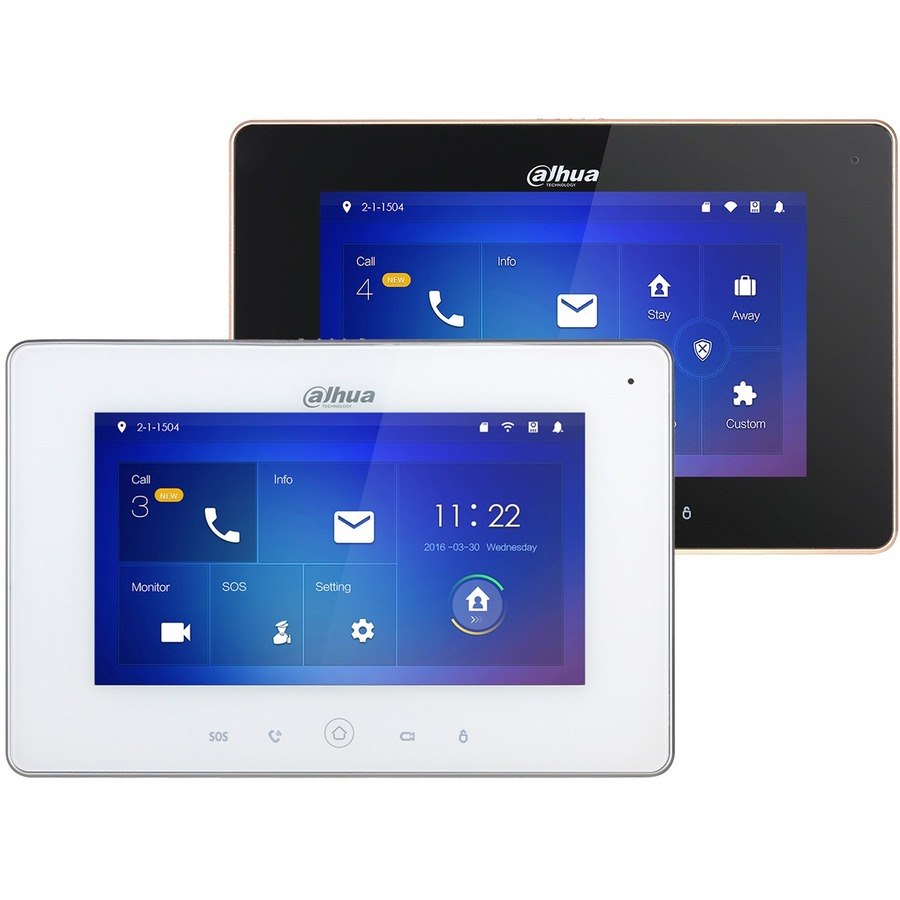

- Product Type
- Video Door Phone Sub Station
- Technical Information
- Communication Mode
- Full-duplex
- Display & Graphics
- Screen Size
- 17.8 cm (7")
- Display Screen Type
- TFT LCD
- Screen Resolution
- 1024 x 600
- Touchscreen
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Consumption
- 7 W
- Physical Characteristics
- Height
- 140 mm
- Width
- 215 mm
- Depth
- 21 mm
- Weight (Approximate)
- 800 g
- Miscellaneous
- Application/Usage
- Indoor
- Additional Information
- Main Processor: Embedded Micro Processor
- Operation System: Embedded LINUX OS
- Video Compression: H.264
- Audio Compression: G.711
- Audio Input: All-direction Microphone
- Audio Output: Built-in Loudspeaker
- Wired Zones: 6 on-board zones
- Wireless Zones: 8 wireless zones
- Alarm Out: 1
- RS485: 1
- Wi-Fi: IEEE802.11b/g/n
- Ethernet: 10M/100Mbps Self-adaptive
- Network Protocol: TCP/IP
- Installation: Surface
- Working Temperature: -10°C to +55°C
- Relative Humidity: 10%RH-90%RH
