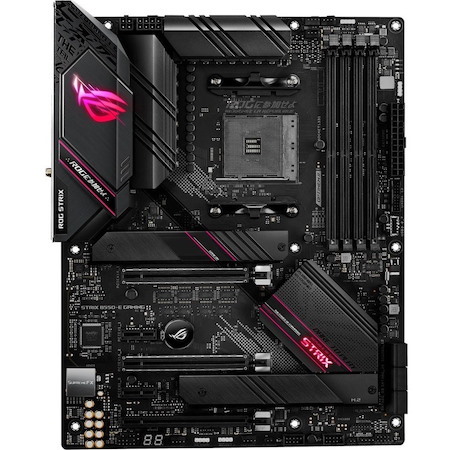

Asus ROG Strix B550-E GAMING Desktop Motherboard - AMD Chipset - Socket AM4 - ATX

  • Part: 2323069
  • Model: ROG STRIX B550-E GAMING
$429.44

Availability

In Stock

ROG STRIX B550-E GAMING

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-E Gaming gives you a head start on your dream build.

Advance Your Gaming Immersion

ROG Strix B550-E Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

PCIe 4.0-Ready

ROG Strix B550-E Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

All-round Performance

ROG Strix B550-E Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.

  • General Information
    • Manufacturer
    • ASUS Computer International
    • Manufacturer Part Number
    • ROG STRIX B550-E GAMING
    • Manufacturer Website Address
    • http://www.asus.com/au
    • Brand Name
    • Asus ROG
    • Product Line
    • Strix
    • Product Model
    • B550-E GAMING
    • Product Name
    • Strix B550-E GAMING Desktop Motherboard
    • Product Type
    • Desktop Motherboard
  • Warranty
    • Limited Warranty
    • 3 Year
  • Processor & Chipset
    • Chipset Manufacturer
    • AMD
    • Total Processor Supported
    • 1
    • Processor Socket
    • Socket AM4
    • Processor Supported
    • Ryzen 3
    • Ryzen 5
    • Ryzen 7
    • Ryzen 9
    • Ryzen 3 PRO
    • Ryzen 5 Pro
    • Ryzen 7 PRO
    • Ryzen 9 PRO
  • Memory
    • Number of Memory Slots
    • 4
    • Memory Form Factor
    • DIMM
    • UDIMM
    • Maximum Memory Supported
    • 128 GB
    • Memory Technology
    • DDR4 SDRAM
    • Memory Speed Supported
    • 2133 MHz
    • 2400 MHz
    • 2666 MHz
    • 2800 MHz
    • 3000 MHz
    • 3200 MHz
    • 3600 MHz (O.C.)
    • 3866 MHz (O.C.)
    • 4000 MHz (O.C.)
    • 4133 MHz (O.C.)
    • 4400 MHz (O.C.)
    • 4600 MHz (O.C.)
    • 4800 MHz (O.C.)
    • 5000 MHz (O.C.)
    • 3466 MHz (O.C.)
    • 5100 MHz (O.C.)
  • I/O Controller
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
    • 0
    • 10
    • 1
  • Video
    • Onboard Video
    • CPU Dependent Video
  • Audio
    • Audio Channels
    • 7.1
  • Network & Communication
    • Bluetooth
    • Yes
    • 2.5Gigabit Ethernet
    • Yes
    • Wireless LAN
    • Yes
    • Wireless LAN Standard
    • IEEE 802.11 a/b/g/n/ac/ax
  • I/O Expansions
    • Number of Total Expansion Slots
    • 5
    • Total Number of PCI Express Slots
    • 5
    • Number of PCI Express x1 Slots
    • 2
    • Number of PCI Express x16 Slots
    • 3
  • Interfaces/Ports
    • Total Number of USB Ports
    • 8
    • Number of USB 2.0 Ports
    • 5
    • Number of USB 3.2 Ports
    • 3
    • HDMI
    • Yes
    • DisplayPort
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
  • Onboard Interfaces
    • Number of SATA Interfaces
    • 6
    • Number of M.2 Interfaces
    • 2
    • Total Number of Onboard USB Ports
    • 7
    • Number of Onboard USB 2.0 Ports
    • 4
    • Number of Onboard USB 3.2 Ports
    • 3
  • Physical Characteristics
    • Form Factor
    • ATX
    • Width
    • 304.8 mm
    • Depth
    • 243.8 mm
  • Miscellaneous
    • Package Contents
      • Strix B550-E GAMING Desktop Motherboard
      • User's Manual
      • 4 x SATA 6Gb/s cable(s)
      • 1 x Supporting DVD
      • 1 x ROG Strix stickers
      • 1 x Cable ties pack(s)
      • 1 x Extension Cable for RGB strips (80 cm)
      • 1 x Extension cable for Addressable LED
      • 1 x ROG Thank you card
      • 1 x Wi-Fi moving antenna
      • 1 x M.2 SSD screw package(s)
      • 1 x M.2 Rubber Package(s)
      • 1 x ROG audio USB Type-C® cable
      • 1 x ROG key chain
    • Brand Compatibility
    • AMD
    • Environmentally Friendly
    • Yes
    • Environmental Certification
    • RoHS
